技术特点：
1． 中英文触膜屏显示，操作直观，简单。
2． PLC电脑控制系统，运行更稳定，可不停机调整任何参数。
3． 可储存十组参数，更换品种更准确。
4． 采用伺服电机拉摸，定位更准确。
5． 独立温控系统，精确度可达±1℃度。
6． 横、纵封温度独立控制，能良好的适用各种复合膜、PE膜等包装材料。
7． 包装的款式多样化，背封、插角、连袋、冲孔等。
8． 生产制袋，封口，包装，打印日期一次性完成。
9． 工作环境清净，噪音小。
Technical characteristics:
1． English and Chinese screen display ,operation is simple .
2． PLC computer system , function is more stable , adjustment any parameters not need stop machine.
3． It can stock ten dispose , simple to change variety.
4． Sever motor drawing film , position accurately.
5． Temperature independent control system ,precision get to±1℃.
6． Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
7． Packing type diversification , pillow sealing, standing type ,punching etc.
8． Bag–making , sealing, packing, print date in one operation.
9． Work circumstance quiet, low noise.
技术特点：
1. 采用电子秤量方式，包装重量更精确，生产成本更低廉。
Technical characteristics:

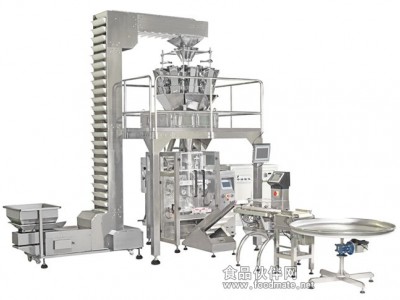

1． Multihead weigher measuring , packing weight more precision, cost more low.
适用包装范围：
适合包装颗粒状、片状、条状，如薯片、虾条、果冻、花生等
Application
Application for various of granule , strip , slice , packing range within 1000ml.
技术参数（Technical parameters）:
| 机型（Type） | TCLB-420 |
| 制袋长度(Bag length) | 80-300mm(L) |
| 制袋宽度(Bag width) | 50-200mm(W) |
| 薄膜宽度(Max width of roll film) | 420mm |
| 包装速度(Packing speed) | 5-60bags/min |
| 计量范围(Measuring range) | 50-1000ml |
| 气压(Air consumption) | 0.65mpa |
| 耗气量(Gas consumption) | 0.3m³/min |
| 电压（Power voltage） | 220V |
| 功率（Power ） | 2.2KW |
| 外型尺寸（Dimension） | (L)1320mm×(W)950mm×(H)1360mm |
